SLOT GRATING SQUARE - (790.218.000.10)
×
![]()
Part Of the Series: Grating-Drain-250
Type no.: 790.218.000.10
EAN no.: 5705499128710
Size: 250x250

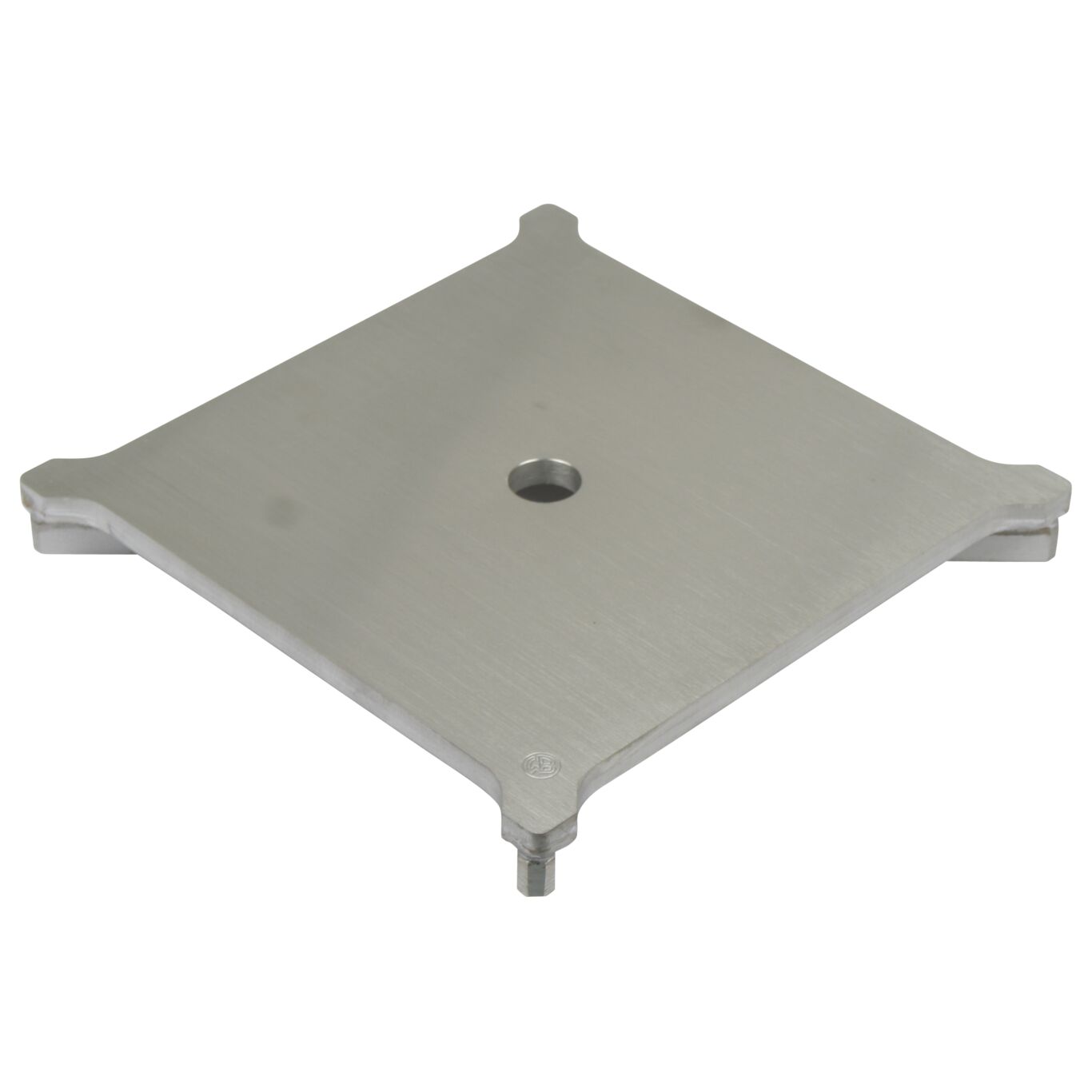

SLOT GRATING SQUARE

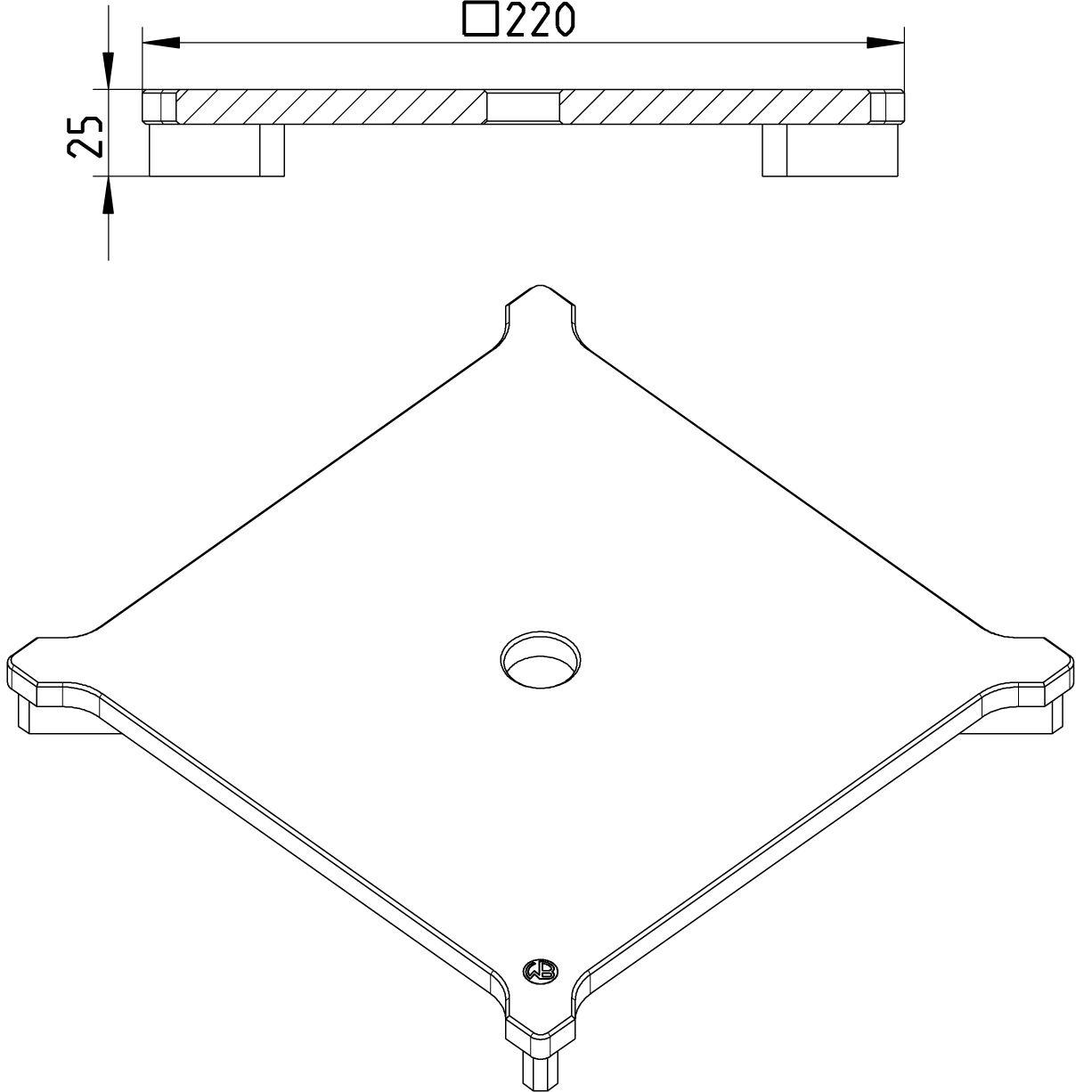

-Grating: 220x220mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load class EN1253 | R50 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non Slip | R10 |
| Holes for screws in other products | 0 |
| Shape of frame | Square |
| Size of frame (mm) | 250x250 |
| Weight (kg) | 3,44 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
