MESH GRATING SQUARE - (790.168.000.22)
×
![]()
Part Of the Series: Grating-Drain-200
Type no.: 790.168.000.22
EAN no.: 5705499113464
RSK no.: 7121880
NRF no.: 3396423
LVI no.: 3304039
Size: 200x200

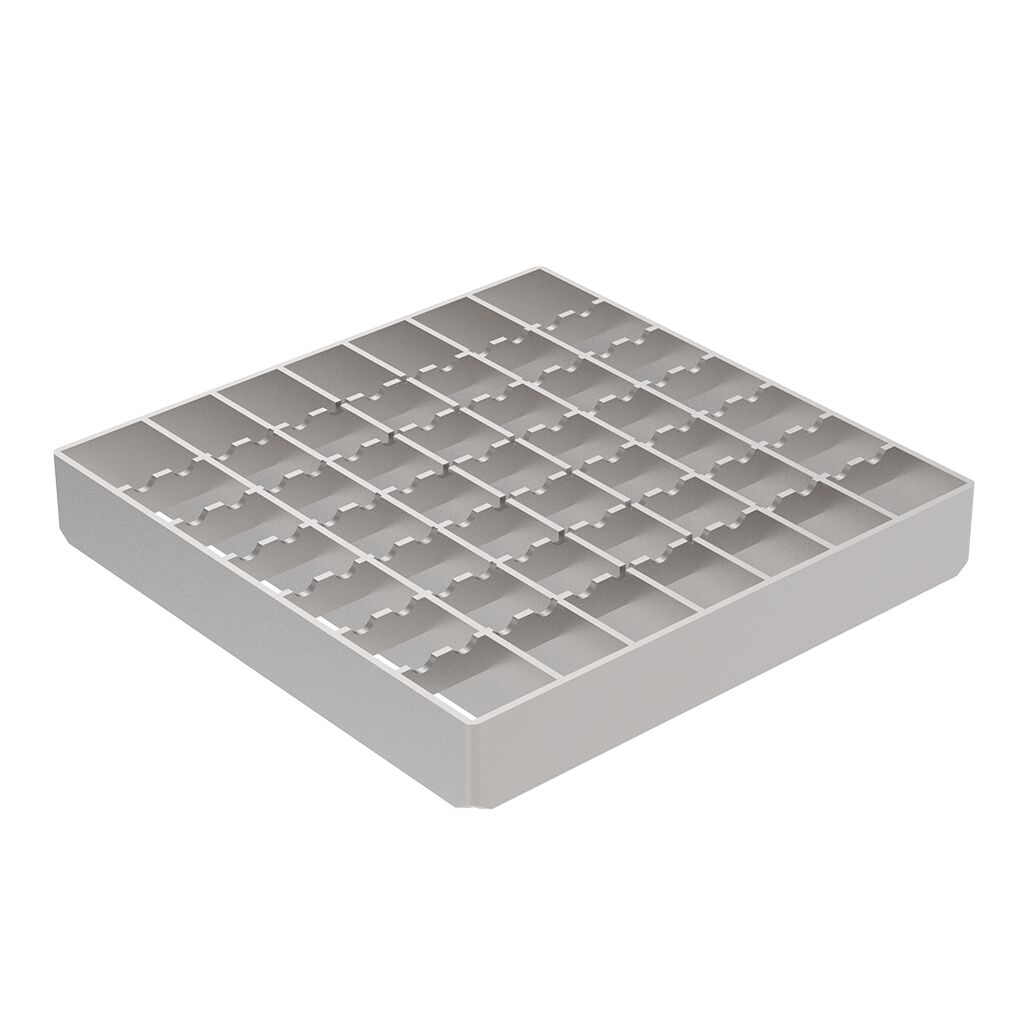

MESH GRATING SQUARE

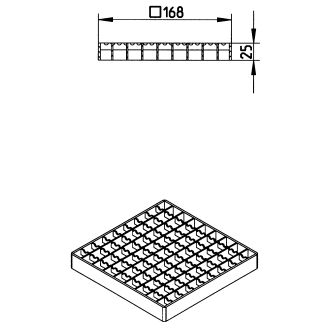

-Grating: 168x168mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load class EN1253 | L15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non Slip | R12 |
| Holes for screws in other products | 0 |
| Shape of frame | Square |
| Size of frame (mm) | 200x200 |
| Weight (kg) | 1,05 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
