LADDER GRATING SQUARE - (790.168.000.28)
×
![]()
Part Of the Series: Grating-Drain-200
Type no.: 790.168.000.28
EAN no.: 5705499124163
RSK no.: 7123462
NRF no.: 3397189
Size: 200x200

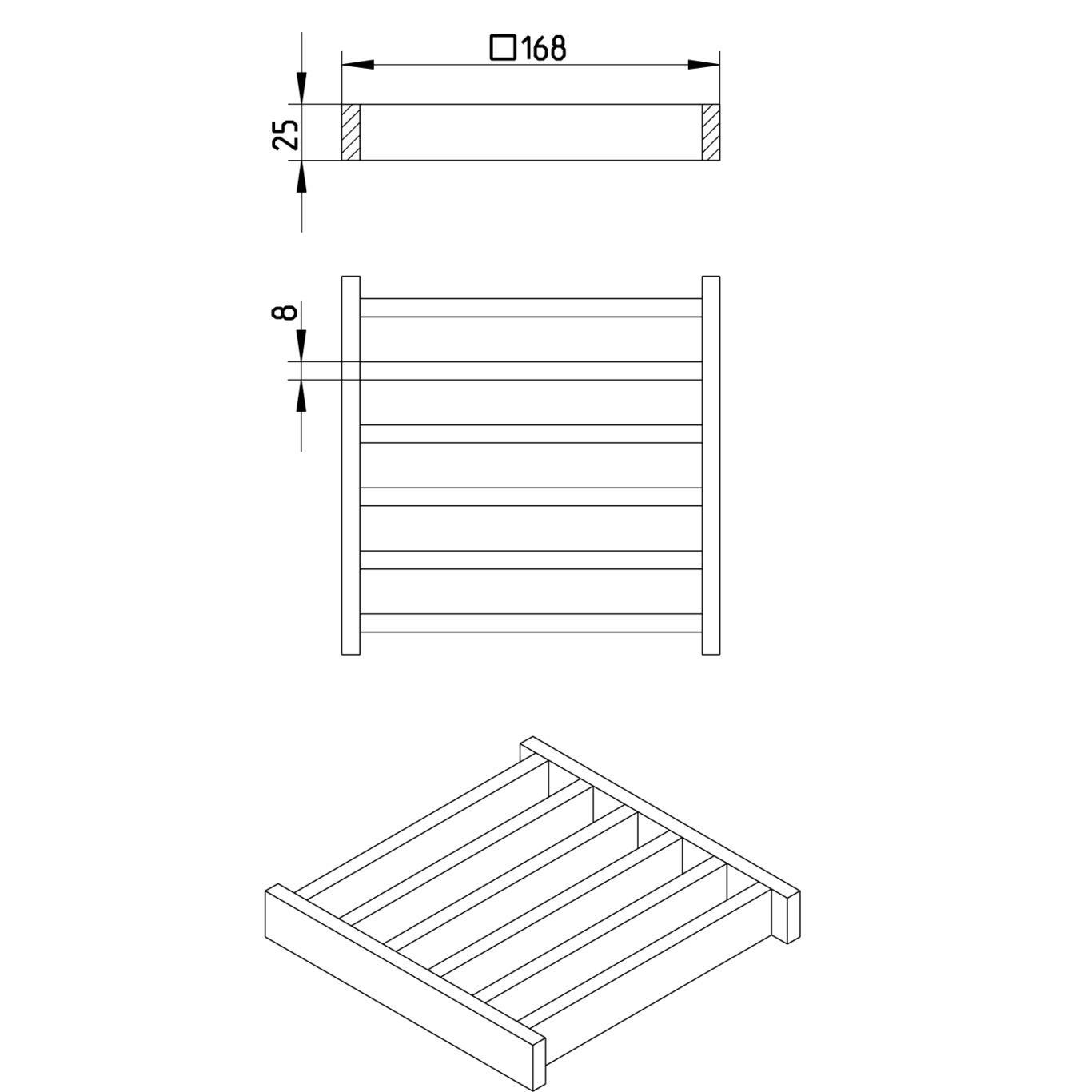

LADDER GRATING SQUARE
-8mm material, fully welded
-Grating: 168x168mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load class EN1253 | M125 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non Slip | R11 |
| Holes for screws in other products | 0 |
| Shape of frame | Square |
| Size of frame (mm) | 200x200 |
| Weight (kg) | 1,97 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
