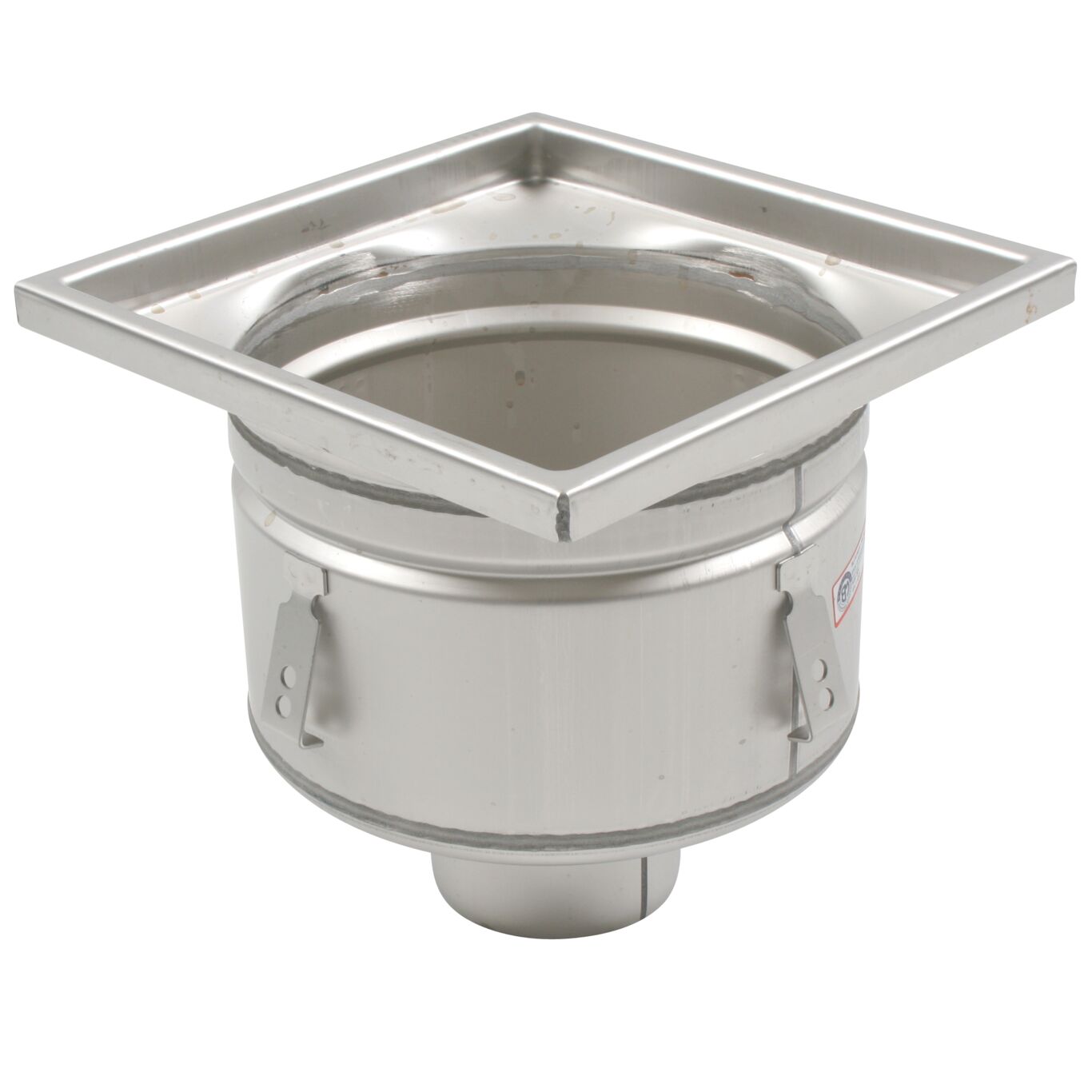

INDUSTRIAL DRAIN, LOW - (766.403.110)
×
![]()
Part Of the Series: Drain-No membrane-300
Type no.: 766.403.110
EAN no.: 5705499110364
VVS no.: 153041316
LVI no.: 3303556
Size: 300x300
INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled
-No membrane, frame: 300x300mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape of frame | Square |
| Size of frame (mm) | 300x300 |
| Weight (kg) | 4,75 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DK - VA 2.42/19497
US - NSF/ANSI/3-A 14159-1-Meat and Poultry
BLÜCHER® Drains EPD
